D100v2 100W/10A Balance Charger/Discharger (SK100131)

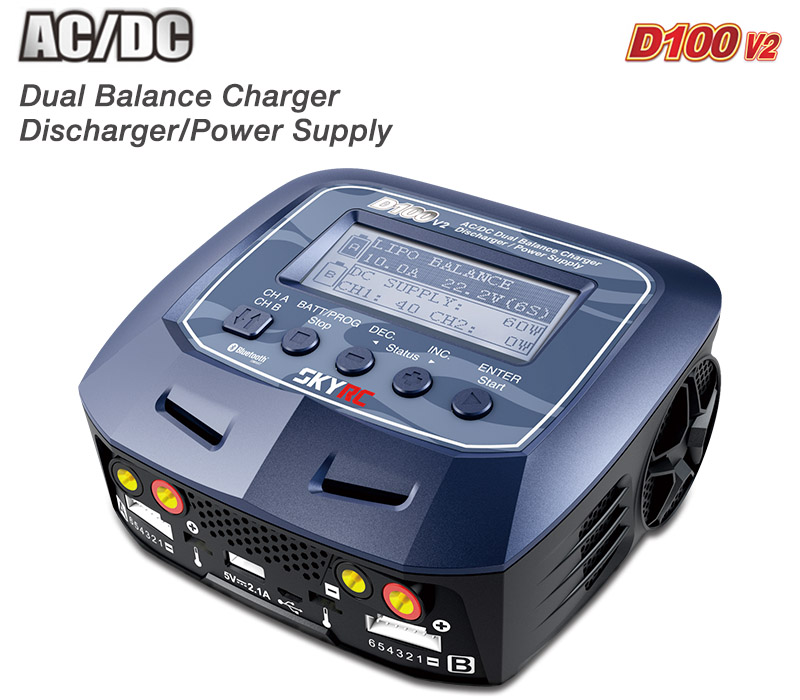

SKYRC D100v2 Charger
SKYRC D100v2 batteries

SkyRC D100 v2 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB)simultaneously. Capable of operating as a power supply with the maximum output of 100W helps the hobbyists to power the DC equiments. With its unprecedented function of voice guide, even a freshman can use this charger without any hurdles. Additional feature including our "SCAN TO GO" either..

SKYRC D100v2 functions
SKYRC D100v2 description

Voice Guide

Purposes to make the charger more user-friendly and customizable. A speaker supported English and Chinese separately have been included in the left side of the charger that can reduce the times for misoperation

Power Distribution

The charger supports power distribution between channel A / channel B and PSU under the total power of 100W in AC mode.

SKYRC D100v2 power distribution

DC Power Supply

The ability of supplying 100W/13.8V DC power dramatically expands its usage scope, which is really an amazing partner for hobbyists to power the DC equipments.

Twin-channel charger

SkyRC D100 v2 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically charge 2 batteries at once.

SKYRC D100v2 twin channel

LiHV Mode Available

The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V
SKYRC D100v2 LiHV mode

SkyCharger App

SKYRC D100v2 SkyCharger App

The Bluetooth 4.0 connectivity allows the user to remote control and monitor the D100 v2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. D100 v2 and your device will establish Bluetooth connection automatically.

Scan to Go

SKYRC D100v2 Scan to Go
A very unique feature of D100 v2 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery.

Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.

Charge Master

The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

SKYRC D100v2 Charge Master
TECHNICAL DATA
Input Voltage AC 100-240V
DC 11-18V
Charge Circuit Power
DC Input		 2x100W
Charge Circuit Power
AC Input		 100W (distribution adjustable)
Discharge Circuit Power 2 x 10W
Charge Current Range 0.1 - 10A
Discharge Current Range 0.1 - 2.0A
Current Drian for Balancing Port Max. 300mA / cell
Trickle Charging Current 50mA - 300mA & OFF
DC Power Supply Output 13.8V / 10-100W
Display Backlight White
Case Material Plastic
Maximum Cells LiPo/LiFe/LiIon: 1-6 cells
NiMH/NiCd: 1-15 cells
Pb: 2-20V
USB Output 5V / 2.1A
Weight 670g
Dimensions (LxWxH) 153x140x67mm
