Race Runner 5 - RR5 FT

  • Overview
  • Details
  • Information Material
  • Pictures

The RR5 FT Features

 - Top of the line competition off-road buggy
 - Easy assembly/dis-assembly
 - Easy maintenance
 - Centralized and compacted parts layout on chassis
 - Elite racing design ultra-durable high performance parts
 - Fifth generation chassis & suspension arms
 - Sophisticated full-time 4WD Shaft Driven mechanics
 - Ultra strengthened chrome drive shaft and axle
 - New easy gear mesh system
 - Easily removable one-piece electronics tray
 - CNC machined light-weight 7075 aircraft alloy chassis
 - Strengthened long wishbones
 - Solid and durable side guards
 - Easily removable composite front, rear and center diff houses
 - Ultra durable front and rear adjustable brake system
 - Rear-brake only servo slot
 - 8mm light-weight 7075 air craft alloy front and rear towers
 - Optimized multiple shock mounting holes
 - Coil-over extended composite shock absorbers with High Pressurized Cell™ System
 - Ultra hardened steel transmission gears
 - Bearing anti-roll bars
 - No-Stress-Effect polyamide front and rear bumper
 - New ball cup-joints
 - Improved brake linkage
 - Super-Cooling RR5 air ventilation system
 - New Viper Racing Air Filters
 - New Barracuda G performance exhaust improved for RR5 (Optional)
 - Adjustable CG
 - Adjustable weight distribution
 - Molded fuel tank with shake absorbing separators
 - Front/rear/central 90° ramp self locking diffs
 - Fully composite body accessories
 - Rear wishbones mud guard
 - Drive and shock shaft boot

TECHNICAL DATA
Length : 825 mm
Width : 470 mm
Overall height : 340 mm
Ground clearance : 25-85 mm
Weight : 12.4kg - 12.8kg (depending on equipment installed)
Wheelbase : 549-565 mm (adjustable)
Trackwidth

: 402mm

Chassis material : T6 Alloy (4mm)
Suspension : Non-parallel non-line independent
Caster angle : 18° (14° - 20° adjustable)
Camber angle : Adjustable
Toe angle : In-board and out-board adjustable
Anti-squat : 3°
Kick-up : 8°-10° (adjustable)
Shock absorber : Coil-over Oil-filled with second floating piston
Rear Squat : 5 Degrees
Shock absorber : Coilover Oilfilled
Transmission : Full-Time 4WD Shaft driven
Gear ratio : 9,14:1 (18 available 7,44:1 to 10,67:1)
Tyre size : 68 x 180 mm (Micro-Stud Ultra Grip Compound)

.

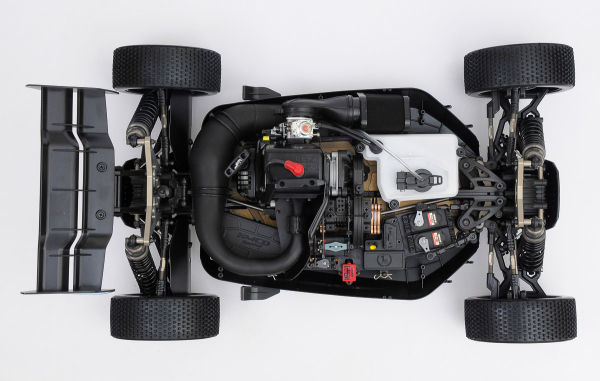

MCD Race Runner 5 FT

Centralized and compacted parts layout on chassis

MCD Race Runner 5 FT

New easy gear mesh system

MCD Race Runner 5 FT

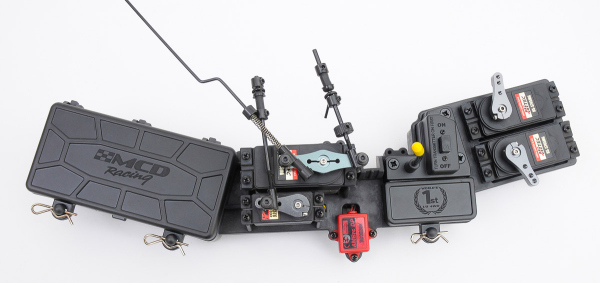

Easily removable one-piece electronics tray

MCD Race Runner 5 FT

CNC machined light-weight 7075 aircraft alloy chassis

MCD Race Runner 5 FT

Strengthened long wishbones

MCD Race Runner 5 FT

Ultra durable front and rear adjustable brake system

MCD Race Runner 5 FT

New Viper Racing Air Filters

MCD Race Runner 5 FT

8mm light-weight 7075 air craft alloy front and rear towers

.

Productflyer

Exploded View

(Info: Delivery without electronic, engine and pipe)
