Hobbywing QuicRun ESC Brushed & Brushless

by admin (comments: 0) Hobbywing

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Hobbywing QuicRun

The Features

  1. Water-proof and dust-proof for all-weather races.
    (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
  2. External programming port, easy to connect to the Program Card when setting the ESC.
  3. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  4. 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
  5. Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
  6. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
  7. Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Note: The Features can depend on the ESC. For Detail Information check the specs of each ESC.

QuicRun ESC WP8BL150 Brushless 150A Sensorless 1/8

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30109001
  • Cont./Peak Current: 150A/950A
  • Resistance: 0.000,5 Ohm
  • Motor Type Supported: Sensorless Brushless Motor
  • Car Applicable: 1/8 Off-road Buggy/Monster
  • Motor Limit
    • For 4S Lipo or 12 cells NiMH:
      4274-size or smaller motor with the KV<3000
    • For 6S Lipo or 18 cells NiMH:
      4274-size or smaller motor with the KV<2400
  • Battery
    • 9-18 Cells NiMH
    • 3-6S Lipo
  • BEC Output: 6V/3A (Switch Mode)
  • Size: 59,5(L)*48(W)*42(H)
  • Weight  / 178g
  • External Program Port: Available
  • Working voltage of Fan: From BEC (6V)



QuicRun ESC WP10BL60 Brushless 60A Sensorless 1/10

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30107100
  • Cont./Peak Current: 60A/360A
  • Resistance: 0.001O
  • Motor Type Supported: Sensorless Brushless Motor
  • Car Applicable: 1:10 On-road/Off-road/Buggy/Monster
  • Motor Limit
    • For 2S Lipo or 6 cells NiMH:
      On-road: 3656-size or smaller motor with the KV<6000
      Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
    • For 3S Lipo or 9 cells NiMH:
      On-road: 3656-size or smaller motor with the KV<4000
      Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300
  • Battery
    • 4-9 Cells NiMH
    • 2-3S Lipo
  • BEC Output: 6V/3A (Switch Mode)
  • Size: 48.5(L)*38(W)*32(H)
  • Weight  / 90g
  • External Program Port: Available
  • Working voltage of Fan: From battery directly without regulating



QuicRun ESC 10BL60 Brushless 60A Sensored 1/10

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30108000
  • Cont./Peak Current: 60A/360A
  • Resistance: 0.0008 Ohm
  • Motor Type Supported: Sensored & Sensorless Brushless Motor
  • Car Applicable: 1/10 & 1/12 On-road / Off-road / F1 / Drift car race
    Street race for fun / Club racing / STOCK race with 0 timing / Drift car race
  • Motor Limit *:
    • For 2S Lipo or 4-6 cells NiMH:
      On-road: >= 8,5 Turn
      Off-road: >= 13,5 Turn
    • For 3S Lipo or 8-9 cells NiMH:
      On-road: >= 13,5 Turn
      Off-road: >= 17,5 Turn
  • Battery
    • 4-9 Cells NiMH
    • 2-3S Lipo
  • BEC Output: 6V/2A (Linear Mode)
  • Size (LxWxH): 33*28*31,5mm (with cooling Fan)
  • Weight : 59g (with wire / without cooling Fan)
  • Working voltage of Fan: From the built-In BEC (6V)

*Note: “T” indicates the limit value of motor turns when the ESC timing is set to 0. The larger the timing, the more turns the motor needs.



QuicRun ESC WP16BL30 Brushless 30A Sensorless 1/16

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30110000
  • Cont./Peak Current: 30A/180A
  • Resistance: 0.002O
  • Motor Type Supported: Sensorless Brushless Motor
  • Car Applicable: 1/16 & 1/18 On-road/Off-road Buggy/Monster
  • Motor Limit
    • For 2S Lipo or 6 cells NiMH:
      On-road: 2435-size or smaller motor with the KV<8000
      Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000
    • For 3S Lipo or 9 cells NiMH:
      On-road: 2435-size or smaller motor with the KV<5500
      Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
  • Battery
    • 4-9 Cells NiMH
    • 2-3S Lipo
  • BEC Output: 6V/1A (Linear Mode)
  • Size: 36(L)*28(W)*16(H)
  • Weight  / 38g
  • External Program Port: No
  • Working voltage of Fan: No Fan

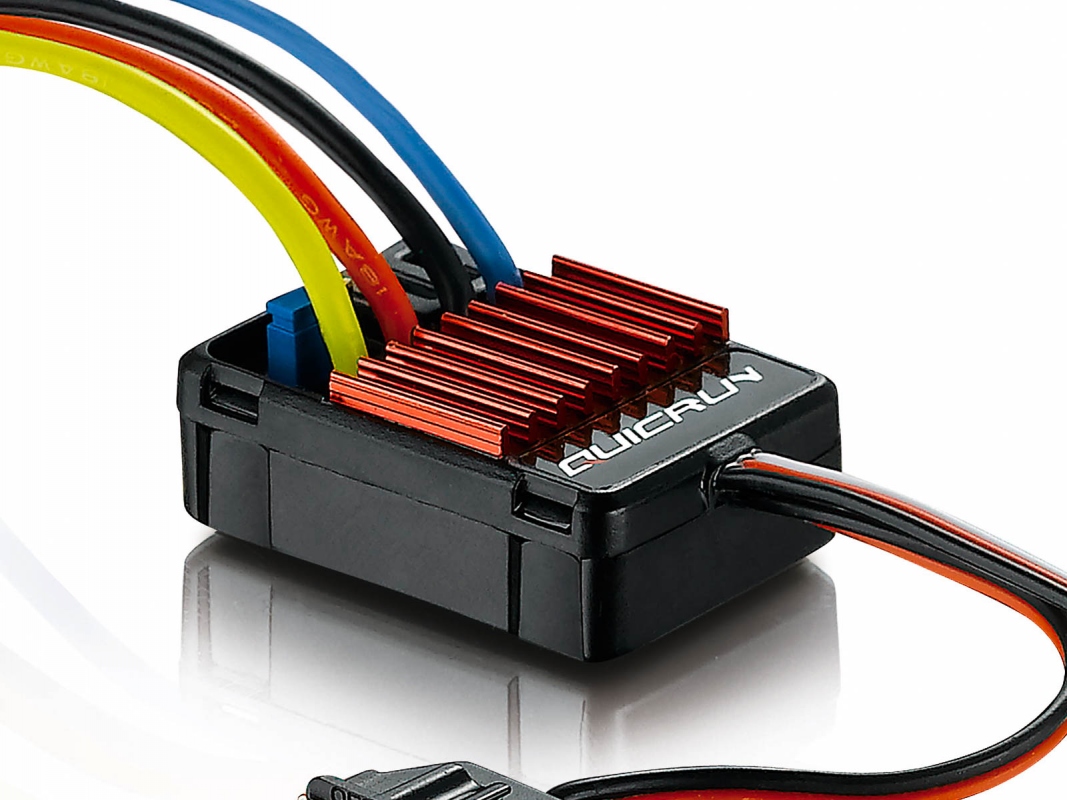

QuicRun ESC 1625 Brushed 25A for 1/16, 1/18

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30120000
  • Fwd. Cont. / Peak Current: 25A / 100A
  • Rev. Cont. / Peak Current: 25A / 100A
  • Voltage Range: 2-3S Lipo or 5-9 NiMH
  • Cars: 1/18 & 1/16
  • Applicable:
    • Touring Car
    • Buggy
    • Short Course Truck
    • Monster
    • Truggy
  • Motor Limit:
    • 2S Lipo or 6 cells NiMH: 280, 370, 380 Size Motor: = RPM<30000 @7.2V
    • 3S Lipo or 9 cells  NiMH: 280, 370, 380 Size Motor: = RPM<20000 @7.2V
  • Resistance: Fwd 0.003O / Rev 0.003O
  • BEC Output: 1A/5V (Linear Mode)
  • PWM Frequency: 1KHz
  • Dimension / Weight: 34*24*14 / 23,5g
  • Cooling Fan: No



QuicRun ESC 1060 Brushed 60A for 1/10

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30120200
  • Fwd. Cont. / Peak Current: 60A /360A
  • Rev. Cont. / Peak Current: 30A /180A
  • Voltage Range: 2-3S Lipo or 5-9 NiMH
  • Cars: 1/10
  • Applicable:
    • Touring Car
    • Buggy
    • Short Course Truck
    • Monster
    • Truggy
    • Rock Crawler
    • Tank
  • Motor Limit:
    • 2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V
    • 3S Lipo or 9 cells  NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V
  • Resistance: Fwd 0.001O / Rev 0.002O
  • BEC Output: 2A/5V (Linear Mode)
  • PWM Frequency: 1KHz
  • Dimension / Weight: 36.5*32*18 / 39g
  • Cooling Fan: No



QuicRun ESC 0860 Dual Brushed 60A

Hobbywing QuicRun

Technical Data:

  • Item-No.: HW30105400
  • Fwd. Cont. / Peak Current: 60A /360A
  • Rev. Cont. / Peak Current: 30A /180A
  • Voltage Range: 2-4S Lipo or 5-12 NiMH
  • Cars: 1/8 & 1/10
  • Applicable:
    • Touring Car
    • Buggy
    • Short Course Truck
    • Monster
    • Truggy
    • Rock Crawler
    • Tank
    • Boat
  • Motor Limit *:
    • 2S Lipo or 6 cells NiMH: 540, 550, 775 Size Motor: =12T or RPM<30000 @7.2V
    • 3S Lipo or 9 cells  NiMH: 540, 550, 775 Size Motor: =18T or RPM<20000 @7.2V
    • 4S Lipo or 12 cells  NiMH: 540, 550, 775 Size Motor: =24T or RPM<15000 @7.2V
  • Resistance: Fwd 0.001O / Rev 0.002O
  • BEC Output: 3A/5V (Switch Mode)
  • PWM Frequency: 1KHz
  • Dimension / Weight: 46.5*36*26.3 / 73g
  • Cooling Fan: Cooling fan works with 2-3S Lipo

 *Note: WP-860-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turns of the motors need to be increased.
