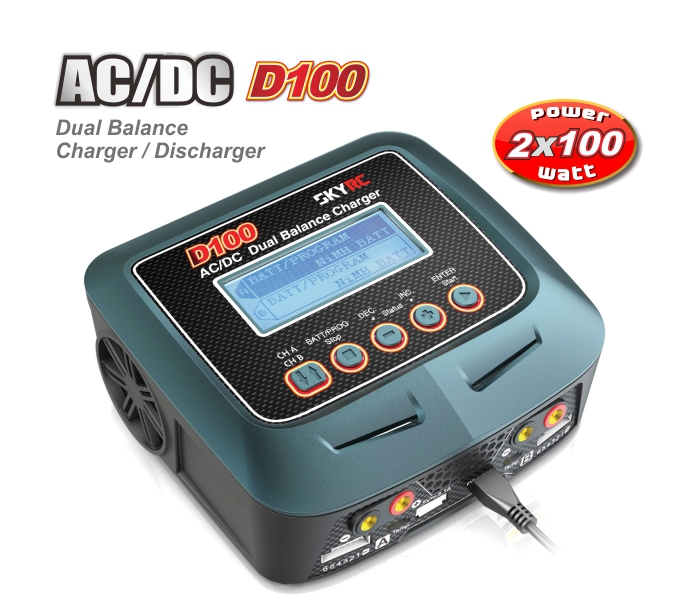

D100 2x100W/10A Balance Charger/Discharger (SK100089)

SKYRC D100 Charger
SKYRC D100 Charger

SKYRC D100 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC mode to get max charging power to shorten charging time. What's more, users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. Besides that, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

SKYRC D100 Charger
SKYRC D100 Charger
SKYRC D100 Charger

Tilt Stand Design

The tilt stand can support the chargers at different tilt angles so that the users can get best operational experience.

SKYRC D100 Charger

Twin-channel Charger

SKYRC D100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically charge 2 batteries at once.

SKYRC D100 Charger

Power Distribution

In AC mode, it supports power distribution, for example, Channel A-70W, then Channel B-30W, the total power is 100W.

SKYRC D100 Charger

LIHV Mode Available

The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.

SKYRC D100 Charger

Charge Master

The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

SKYRC D100 Charger
SKYRC D100 Charger

Finally, Your Charger Gets Its Own App

Smart Phone Control via Wi-Fi Module (both iOS and Android) This charger can be controlled and operated by smart phones via Wi-Fi module (optional part SK-600075).

SKYRC D100 Charger
TECHNICAL DATA
Input Voltage AC 100-240V
DC 11-18V
Charge Circuit Power DC Input 2 x 100W
AC Input 100W (Support Power Distribution)
Discharge Circuit Power 2 x 10W
Charge Current 0.1 - 10.0A
Discharge Current 0.1 - 5.0A
Current Drian for Balancing Port Max. 200mA / cell
Trickle Charging Current 30mA - 300mA & OFF
Display Backlight Blue
Case Material Plastic
Maximum Cells LiPo/LiFe/LiIon: 1-6 cells
NiMH/NiCd: 1-15 cells
Pb: 2-20V
Weight 975g
Dimensions (LxWxH) 153x163x72mm
