NC2500 AA/AAA Battery Charger & Analyzer (SK100059)

The World's Most Advanced
AAA/AA Battery Charger

SkyRC NC2500 AA/AAA Battery Charger & Analyzer is more than just a battery charger which can perform a number of different functions. If you are interested in getting optimum power, turbo fast charging (up to 2500mA Charge Current) and the most battery life possible, this is an excellent choice for you.

The charger has four compartments for AA batteries and four compartments for AAA batteries and it is able to charge both AA and AAA batteries simultaneously. Due to the different capacity, you could set the charge rate accordingly or set all at once. With charging,discharging, refresh & analyze, break-in and cycle functions as well as individual LCD displays for charging status; this charging unit is reliable, user-friendly and ideal for use in the home, office or on a trip.

All-new Design





Four Independent Slots

Fit both AA and AAA NiMH/NiCd
batteries. Batteries can be
inserted or taken out easily.



Larger LCD display

Larger LCD display with backlit for easy reading.
Digitally display various modes during operation.
Also the charging current (in mA),
accumulated charging capacity (in mAh),
the voltage (in Volt) and time elapsed (in hh:mm)



Seven Buttons

Seven buttons for easy programming and operation.
Four Slot Number Buttons (SNB) to display individual
slot operation data during the various operation modes,
and other three buttons for programming and operation.




Tilt Stand

It supports the charger stand
at different tilt angles and
enables the users get best
operational experience.

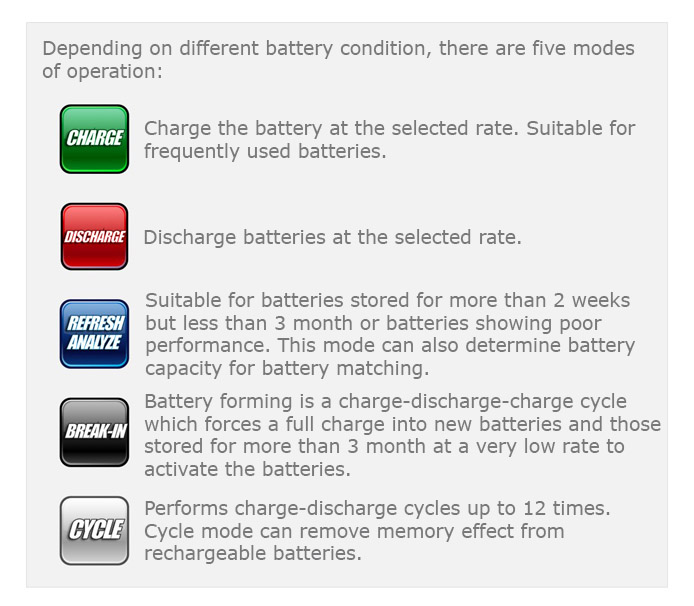

Application

Protection



Innovative Bluetooth Talk


Finally, your charger gets its own APP. You could control this smart charger by your smart phone via Bluetooth. More touch, easy control. Operating this charger on your smart phone with your fingers, you will have best using experience and inter-activity. What's more, you could get more functions (optional Delta Peak Value and Discharger Termination Voltage) and information (battery temp, internal resistance and voltage graphic) in Smart Phone Control Mode.

TECHNISCHE DATEN
  Standard Alone Mode Smart Phone Control Mode
Charging Current 0.2 - 2.5A 0.2 - 2.5A
Delta Peak 5mV 3-15mV
Discharging Current 0.1 - 1.0A 0.1 - 1.0A
Discharging Termination Voltage 0.9V 0.5V - 1.0V
Battery Capacity Range 500mAh - 3500mAh 500mAh - 3500mAh
No of Cycle 1-12 1-12
Top off Charging Current 100mA 100mA
Maintenance Charging Current (Trickle) 30mA 30mA
Temperature Protection 55°C 55-70°C
Input Power 12V / 2.5A 12V / 2.5A
USB Power 5V / 1A 5V / 1A
Weight 370g 370g
Dimensions (LxWxH) 154x104x50mm 154x104x50mm
