RS16 180W/16A Balance Charger/Discharger (SK100078)

Super-compact Portable Balance
Charger/Discharger

SkyRC RS16 is a high-performance, micro processor control
charge/discharge station with battery management suitable for all current battery types. There is an integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; the maximum charge current/power can reach 16A/180W.

SKYRC RS16 represents the newest technology of chargers with its handheld super-compact portable charging system. The joystick gives the user best operational experience and also makes the charger smart and unique.

There are two DC inputs, one is banana plug type and the other is XT60 type. The banana plug type in the bottom is designed for Direct Plug Docking System.





Compact and Unique Design



The size of SkyRC RS16
is 92x111.4x50mm which
makes this product a super-
compact portable charging
system.


Smart Cooling Fan

The fan is ON/OFF
automatically according to
the internal temperature.


Two DC Inputs

There are two DC inputs, one
(XT60 Type) is located in the right
side of the charger and the other
(banana plug type) is located in
the bottom.

Direct Plug Docking System

There is a DC input on the bottom of the charger and it is designed
for docking into the eFuel 230W 13.8V switch DC power supply
(Part.No. SK-200017).





Depending on different kinds of batteries, there are different charging
modes to meet users requests:
LiPo, LiFe & LiIon Batteries:
Normal Charge, Balance Charge, Fast Charge, Discharge, Storage
NiCd & NiMH Batteries:
Normal Charge, Auto Charge, Discharge, Cycle, Re-Peak
PB Battery:
Normal Charge, Discharge



Special Features

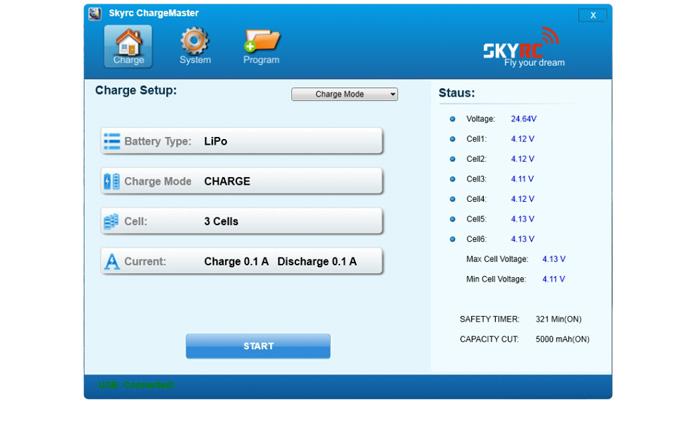

SkyRC Charge Master





The Set Contains

1. SkyRC RS16 Charger
2. 18AWG Wire Charging Cable
3. DC Input Power Cable
4. 2S LiPo Hardcase Charging Lead Including Balancing Adapter
5. Multiple Balancing Board

TECHNISCHE DATEN
DC Input Voltage 11-18V
Controls Joystick
Display Type 2x16 LCD
Display Backlight Blue
Case Material Metal
Cooling System 1 Built-in fan
PC Communications USB Port for PC Control & Firmware Upgrade
External Port Balance Socket XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port
Delta Peak Detection 3-15mV/cell
Charge Cutoff Temperature 20-80°C
Charge Voltage LiPo: 4.18-4.30V/cell
LiFe: 3.58-3.70V/cell
LiIon: 4.08-4.20V/cell
Balance Current 200mA/cell
Voltage Range 0.1 - 25.8V
Maximum Cells LiPo/LiFe/LiIon: 1-6 cells
NiMH/NiCd: 1-15 cells
Pb: 2-20 cells
Battery Capacity Range 100-50000mAh
Charge Current 0.1-16A
Charge Wattage 180W
Safety Timer 1-720 minutes
Discharge Current 0.1-8A
Discharge Wattage 30W
Discharge Cut-off Voltage NiMH/NiCd: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiFe: 2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
Pb: 1.8V/cell
Balance Cells 6 cells
Memory 10 charge/discharge profiles
Charge Method CC/CV for lithium types and lead batteries, Delta-Peak for NiMH/NiCd
Weight 405g
Dimensions (LxWxH) 111.4x92x50mm
