TS 50A Electronic Speed Controller (SK300060)

Toro TS50 SENSORED ESC

Toro TS50 ESC is a brushless sensored ESC with small size, light weight, and electronic power switch, which is designed for 1/10 Buggy and Touring car. It accepts 4-6S NimH or 2S LiPo battery, and its BEC is 6V/2A.
It comes with well-performed throttle and brake control function. Racers could set punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
It also supports firmware update and can be programmed by program box, and SkyLink via PC.

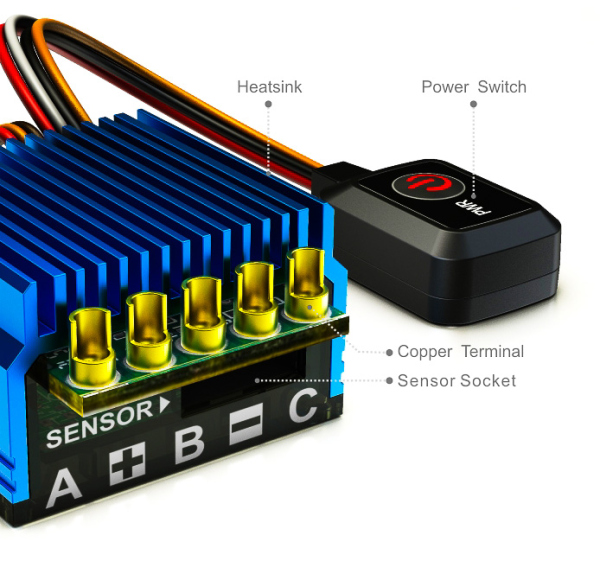

Compact Design

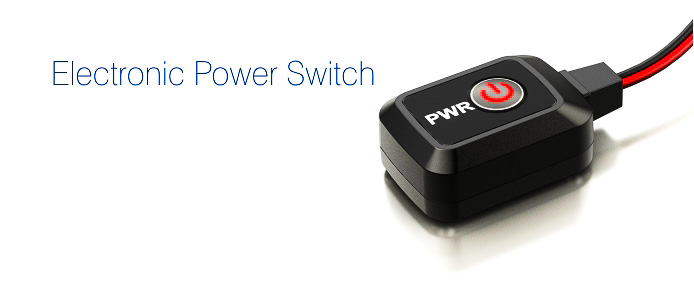

A simple push button operates the switch
meaning to eliminate the problems associated
with intermittent contact of an ordinary
mechanical switch.

Less Resistance, Less Heat, More Effective

10 User Modifiable Profiles

The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.

Safety Features

Firmware Update

The firmware can be updated by connecting the ESC with PC.

Programming Methods

The ESC can be programmed with:

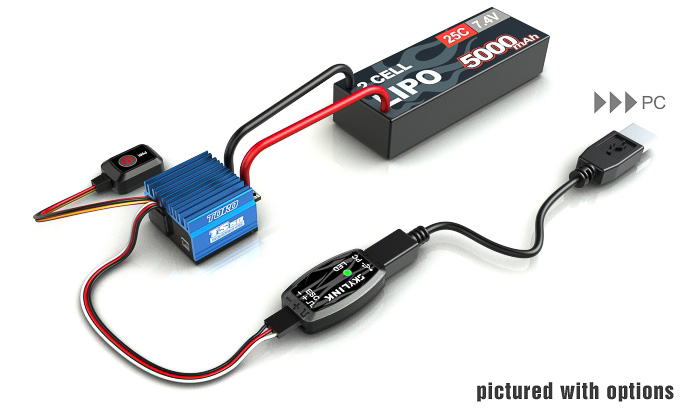

1. PC connected with SKYLINK (SK600013)
SK300060 - Toro TS50 ESC programming
2. PROGBOX (SK600046)

Well-performed Throttle and Brake Control Function:

Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.
SK300060 - Toro TS50 ESC software

Throttle Control Setting

SK300060 - Toro TS50 ESC software

Throttle Curve Custom

SK300060 - Toro TS50 ESC software

Brake Control Setting

SK300060 - Toro TS50 ESC software

Brake Curve Custom

TECHNICAL DATA
Constant/Burst Current 50A / 300A
Motors Sensor & Sensorless Brushless Motors
Cars 1/10 Buggy & Touring Car
Motor Limits 4-6S NiMH or 2S LiPo
≥8.5T (1/10 Touring Car)
≥11.5T (1/10 Buggy)
Resistance 0.0006 Ohm
Battery Cell Count 4-6S NiMH or 2S LiPo
BEC Output 6V @ 2A
Weight 60g
Dimensions (LxWxH) 30,8 x 26 x 19,7mm
FAN Optional Part
