SC 150A Electronic Speed Controller (SK-300045-01)
SC150A
Advanced Timing System

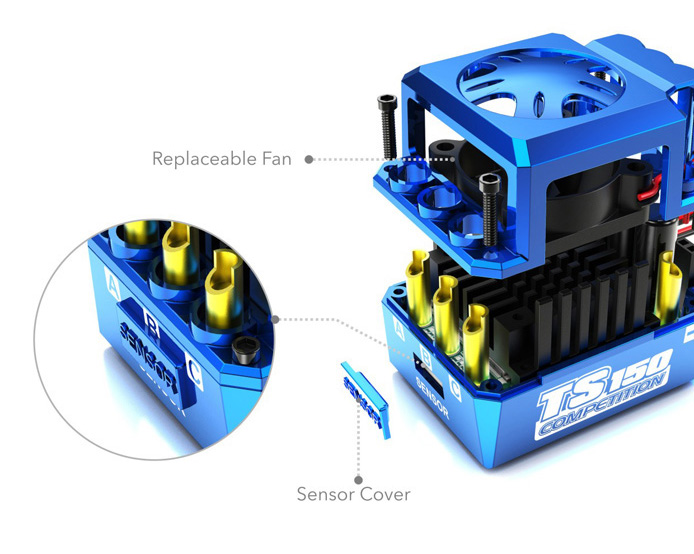

Toro TS150 150A ESC is big power in a small package, intending for 1/8th buggies, truggies and monster trucks running up to 6S LiPo. The innovative new case allows for fan changes and built-in 6V/5A BEC.
Leading the industry not only in power handing ability but also size and features with Throttle Control, Drag Brake, Custom Brake Input Curve,Voltage Cutoff for LiPo, ESC and Motor Overheat Protection and much more.
As always, Toro TS150 150A ESC offers industry-leading software and firmware update functions and can be programmed by SkyLink via PC,
Program Box and even your smart phone.
Compact Design
Electronic Power Switch
A simple push button operates the switch
meaning to eliminate the problems associated
with intermittent contact of an ordinary
mechanical switch.
Less Resistance, Less Heat, More Efficiency
10 User Modifiable Profiles
The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
Safety Features
Firmware Update
The firmware can be updated by connecting the ESC to a PC or a smart phone.
Programming Methods
The ESC can be programmed with a PC connected with SKYLINK (SK-600013)
The ESC can be programmed with a smart phone via Bluetooth Module (SK-600058)
The ESC can be programmed with the PROGBOX (SK-600046)
Precise Programmable Items
Advanced Timing System
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.
Well-performed Throttle and Brake Control Function
Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.
TECHNISCHE DATEN
| Constant/Burst Current | 150A / 950A |
|---|---|
| Motors | Sensor & Sensorless Brushless Motors |
| Cars | 1/8 Buggy, Truck & Monster |
| Motor Limits | 2-4S LiPo: ≤3000KV, 2-6 Poles 5-6S LiPo: ≤2400KV, 2-4 Poles |
| Resistance | 0.0002 Ohm |
| Battery Cell Count | 6-19S NiMH or 2-6S LiPo |
| BEC Output | 6V 5A, Switched |
| Fan | 6V 0.3A |
| Weight | 95g (without wires) |
| Dimensions (LxWxH) | 58x41x38mm |
